Sport-Thieme TuWa Climbing Frame

Sport-Thieme large climbing frame – versatile and space-saving

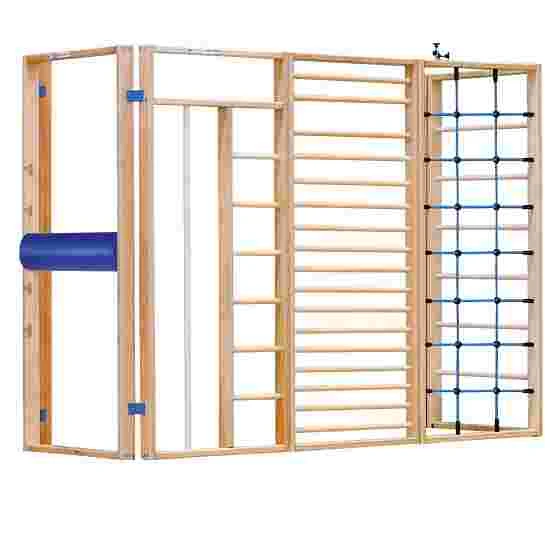

The Sport-Thieme large climbing frame consists of a 5-part climbing and gymnastics wall combination and consists of a horizontal bar with turning roller, a climbing net section, wall bars, a climbing pole section with a ladder and a wide set of wall bars. All of the elements are made from high-quality beechwood and are extremely sturdy. The Sport-Thieme large climbing frame is pre-assembled, making installation hassle-free. It can even be installed in halls with underfloor heating. After use, the gym combination can be folded back against the wall, thus saving a lot of space! Particularly practical: the Sport-Thieme large climbing frame also comes with suitable fall protection mats.

Product information on the Sport-Thieme large climbing frame:

• Material: beechwood with a clear varnish
• Dimensions when folded out (LxWxH): 323x125x230 cm
• Dimensions when folded back (LxWxH): 414x24x230 cm
• Pre-assembled
• Each element can hold up to 90 kg

Further information on the individual elements:
Horizontal bar with turning roller:

• HxW: 230×100 cm
• Horizontal bar can be adjusted to one of 4 height settings, torsion-proof
• Includes turning roller

Wall bars:

• HxW: 230×100 cm
• Rungs: ø 35 mm, inset in side frame
• Distance between rungs middle-middle: 13.7 cm
• Clear separation between rungs: 10.2 cm

Climbing net section:

• HxW: 230×100 cm
• Net made from 16-mm propylene material with ergonomic ball connections
• Mesh width: 24 cm
• Frame thickness: 4 cm

Climbing pole section with ladder:

• HxW: 230×100 cm
• Distance between rungs: 27 cm
• Length of rungs: 37 cm

Wide set of wall bars:

• HxW: 230×100 cm
• Rungs: ø 35 mm
• Distance between rungs: approx. 30 cm

Set of fall protection mats:

• Composite foam, 80 kg/m³
• Cover: Polygrip, blue
• With hook-and-loop system

The 9-part mat set consists of:

• 2 mats, 100x100x6 cm (with hook-and-loop band)
• 4 mats, 150x100x6 cm (with hook-and-loop band)
• 2 mats, 110x110x6 cm (with hook-and-loop band)
• 1 mat 92x10x3 cm (with hook-and-loop tape on both long sides)

This is a recommendation. Please enquire about the applicable regulations with your local authority responsible for accident prevention.

Sequence in the version which folds to the right (from left to right):

• Horizontal bar with turning roller
• Climbing pole section with ladder
• Wall bars
• Climbing net section
• Wide set of wall bars

Sequence in the version which folds to the left (from left to right):

• Wide set of wall bars
• Climbing pole section with ladder
• Wall bars
• Climbing net section
• Horizontal bar with turning roller
